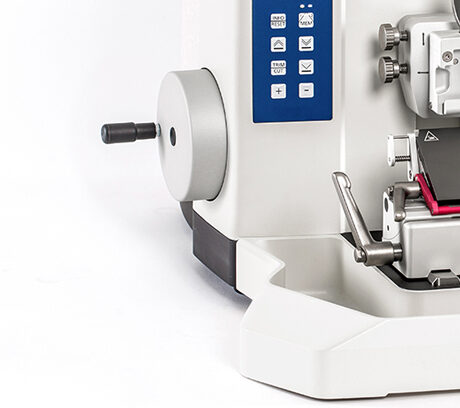

Revolutionary Dual-Handwheel for Effortless Coarse Advance

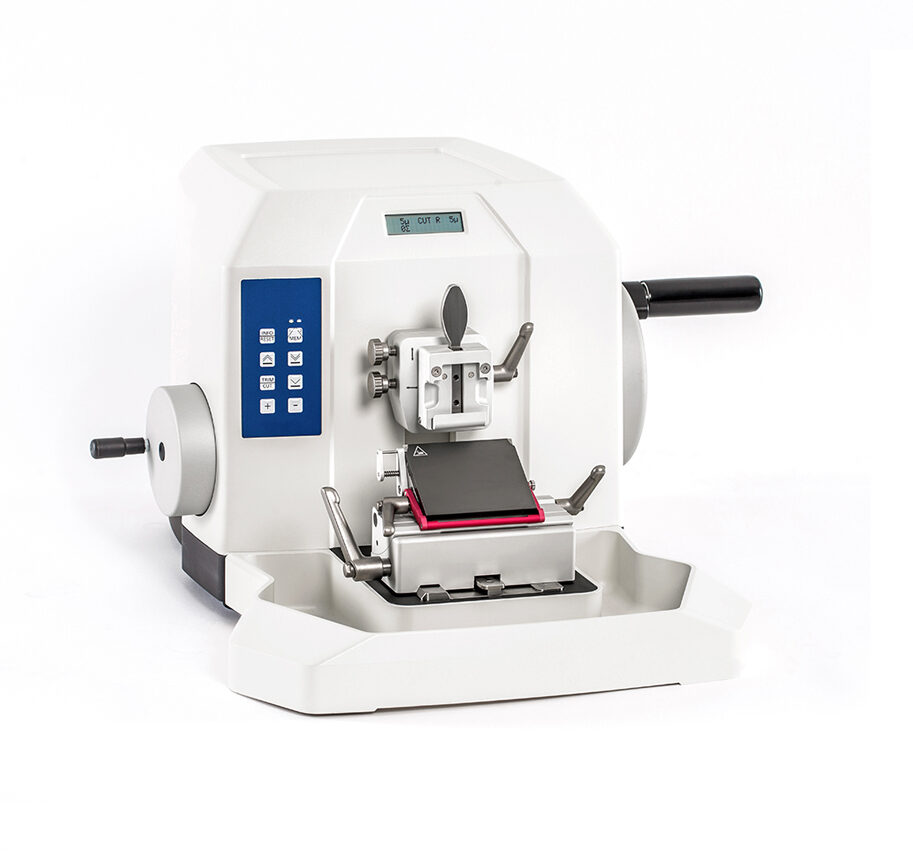

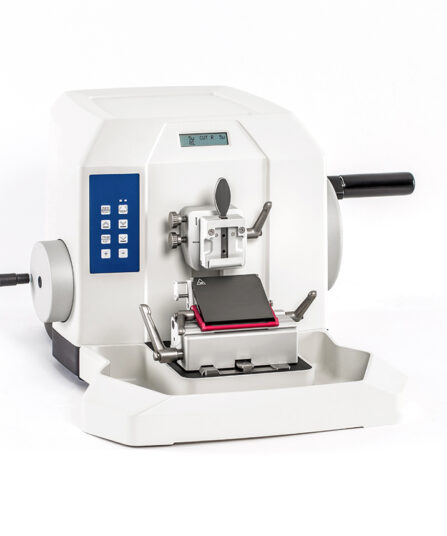

The new CUT 5062+ Microtome from SLEE Medical introduces an innovative left-hand coarse advance handwheel, designed to make specimen positioning faster, easier, and more ergonomic. Simply turn the handwheel to smoothly move your specimen towards the knife or blade, reducing operator strain and improving workflow efficiency.
For added safety, the system emits an acoustic alert when reaching the mechanical end positions—preventing over-rotation and protecting your instrument from potential damage.
CUT 5062+ HIGHLIGHTS
- Ergonomic design
- Additional coarse feed handwheel
- Spacious, integrated section waste tray
- Wide range of accessories
- Intuitive control panel
- Hand wheel lock in any position
- Blade holder levers changeable (for left-handed users)
- 2 operation modes (standard and rocking mode)
- Motorised trimming up to 750 μm, programmable
- Motorised advance / return of specimen (2 speeds)
- Display of section counter, section sum and remaining travel
- Tip function for precise specimen approach
- 2 specimen feed memory positions
- Variable retraction
- External control panel (optional)
- Second handwheel brake (optional)
FEATURES

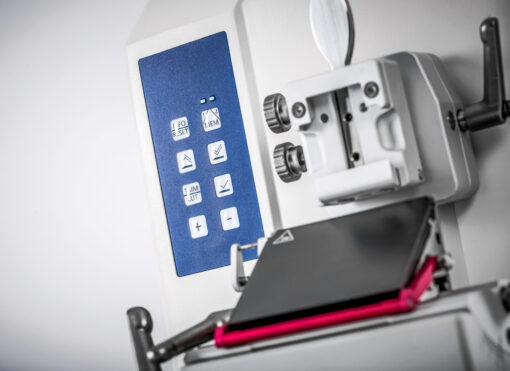

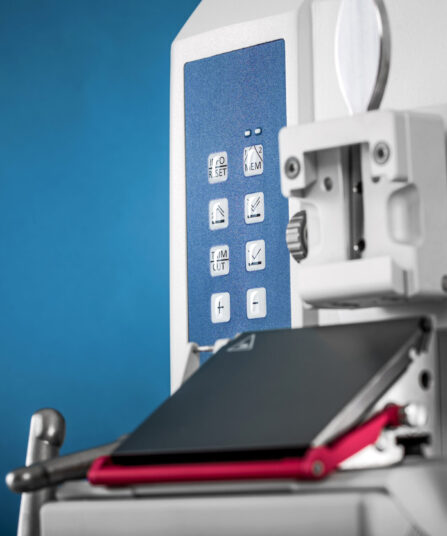

Intuitive use
Multiple different features can often make it complicated for the user. The Cut 5062+ has an intuitive control panel that can be easily controlled and is more user-friendly.
Precise orientation
One-handed specimen orientation on the x- and y-axis as well as the blade holder positioning scale on the base plate allows a fast alignment.

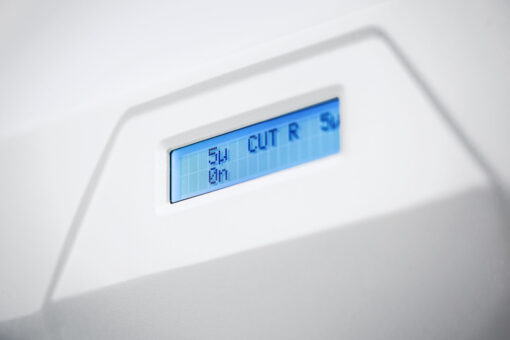

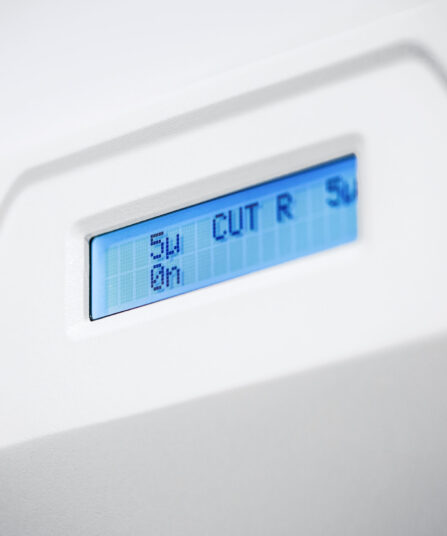

All in sight
All settings can be easily seen and monitored through the LCD screen which is displayed at the eye level of the user, located on the front of the microtome.
Section waste tray
The large waste tray fits perfectly to the body of the microtome and collects the waste during sectioning. Disposal of cutting waste is easy and fast.
Safety
The handwheel can be locked in any position. The blade holder features a finger protection system for increased safety. A second handwheel brake is optionally available.
Ergonomics
All Cut Microtomes have been created with the user in mind – ergonomics is just as important as the section quality. Perfect fit for workplaces of the Ergotec series.
OPTIONAL ACCESSORIES
- Aquatec system
- MTR table top quick freezer
- A magnifying glass with lighting
- External control unit for CUT 5062+
- TC65 disposable blade holder (for carbide blades)
- Carbide blades (1 pc.)
- Glass knife holder (for triangle glass knives)
- Sample sheet (for use with glass knife holder)
- Super mega cassette clamp, orientable
- Super mega cassette clamp, rigid
- Standard clamp, rigid
- Foil clip
- Prism (set)
- Round specimen holder (different diameters on request)
- Others on request
CUT 5062+ SPECIFICATION
Section Thickness Range | 0.5–100μm |
Section Thickness | 0.5–2μm in 0.5-μm steps |
Settings | 2–20μm in 1-μm steps 20–50μm in 2-μm steps 50–100μm in 5-μm steps |
Trim Thickness Settings | 0.5–750μm |
Horizontal Advance | 28mm |
Vertical Stroke | 72mm |
Specimen Retraction | 0–200μm selectable |
Specimen Orientation | ± 8 ° |
Dimension (WxDxH) | 520 x 600 x 325 mm |
Weight | 33kg |
