Features:
Motorized trimming up to 750 µm, programmable
Motorized advance (2 speeds) / return of specimen
2 Specimen feed memory positions
Rocking mode
Highly efficient motorized sectioning (section window / variably adjustable cutting speeds)
Variable retraction
Intuitive control panel
Section counter (Stroke / Distance)
Specimen size up to 50 x 50 mm with standard object clamp or standard cassette size for universal cassette clamp
Spacious integrated section waste tray
External control element (optional)
Wide range of accessories
Optional accessories
Aquatec system

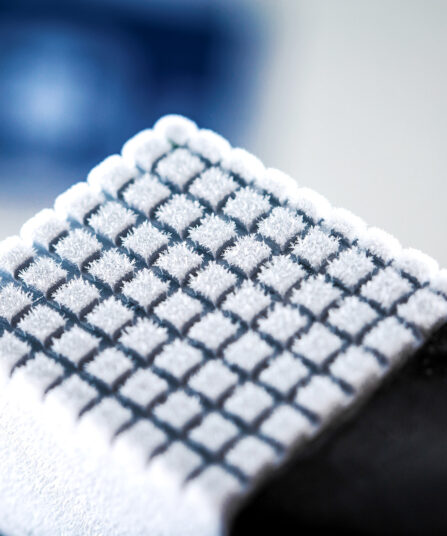

MTR Bench top quick-freezing unit
Magnifier with illumination
External control panel CUT 6062
TC65 Disposable blade holder (for tungsten carbide blades)
Tungsten carbide blades (1 pcs.)
Glass knife holder (for triangle glass knives)
Specimen arc (for glass knife holder application)
Super Mega Cassette Clamp, orientable
Super Mega Cassette Clamp, fixed
Standard specimen clamp, fixed
Foil clamp
Prism (Set)
Round specimen holders (different diameters on demand)
More on request
Standard components
Basic instrument

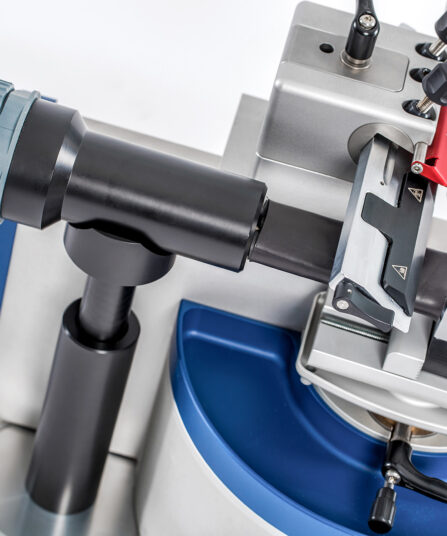

Specimen orientation
Universal cassette clamp, orientable
(alternatively: Standard specimen clamp, orientable)
Disposable blade holder
(alternatively: Standard knife holder)
Section waste tray
Disposable blades, low profile (1 box, 50 pcs.)
Foot switch for motor drive
Mains cable
Operation Manual
Dust cover
Specifications CUT 6062
Section thickness Setting range 0.5 µm to 100 µm
Section thickness selection 0.5 to 2 µm in 0.5 µm-steps
2 to 20 µm in 1.0 µm-steps
20 to 50 µm in 2.0 µm-steps
50 to 100 µm in 5.0 µm-steps
Trimming thickness setting range 0.5 – 2 μm in 0.5-μm steps
2 – 20 μm in 1.0-μm steps
20 – 50 μm in 2.0-μm steps
50 – 150 μm in 5.0-μm steps
160 – 750 μm in 10.0-μm steps
Horizontal specimen feed 28 mm
Specimen feed memory 2 positions
Vertical stroke 72 mm
Sectioning speed 3- 450 mm/s
Coarse feed motorized, [75/150/300/600] & 3.000 µm/s
Specimen retraction 0 – 200 µm
Specimen orientation, horizontal 8°
Specimen orientation, vertical 8°
Specimen orientation, z-axis 360°
Section counter Strokes / Distance [µm]
Dimensions [WxDxH] 480 x 610 x 350 mm
incl. handwheel and waste tray
Weight [w/o accessories] 33 kg
