FEATURES

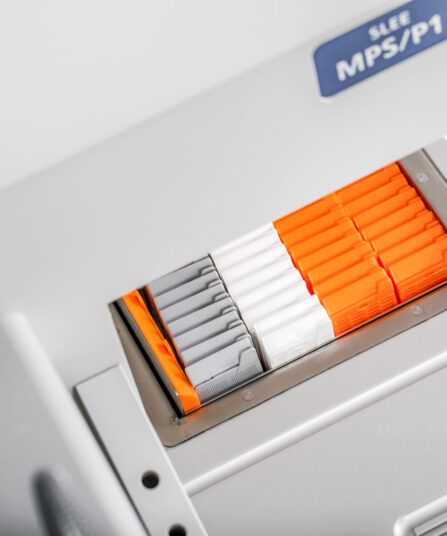

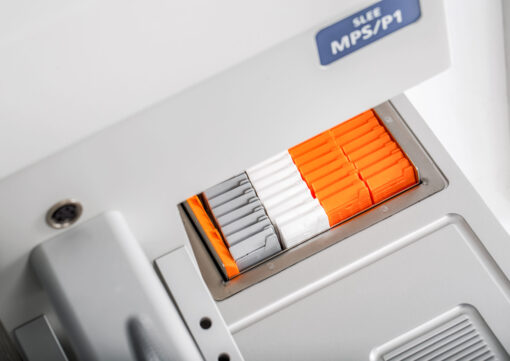

The MPS/P1 Embedding Centre is a complete paraffin dispensing unit that includes a 3.8 litres paraffin container, a heated working area and a cooling spot. The ergonomically elevated heated working area is illuminated with adjustable LED light and allows for the comfortable processing of specimens. Two heated trays provide a pre-warming capacity of 80 cassettes and 200 embedding moulds.

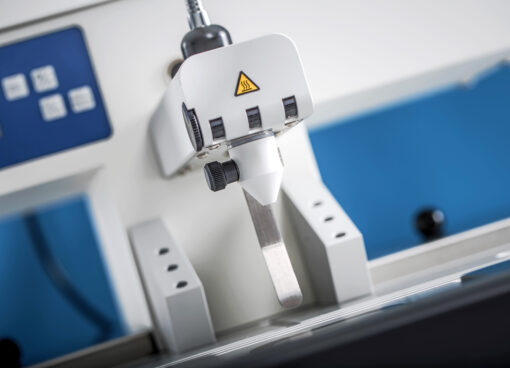

SLEE Embedding Centres come with an integrated wax trimmer that efficiently removes excess paraffin from any tissue cassette. It then easily melts and drains in the removable tray below. The large scale design enables simultaneous paraffin trimming of multiple blocks and avoids any physical damage to the user.
ERGONOMIC
Space-saving and spacious. The MPS provides a large heated paraffin collection tray and a generous cooling spot as well as adjustable features such as force holders, magnifying glass and manual lever or foot switch for dispensing all to provide you with the best comfort whilst working.
EFFICIENCY
All functions of the unit are controlled by an intuitive control panel including working hours and working days programmable, allowing an uninterrupted routine workflow.
ADVANCEMENT
MPS/P1 is equipped with an advanced microprocessor that automatically regulates the temperatures of each area and container.
ADDITIONAL FEATURES
- Manual lever and footswitch for paraffin dispensing
- Spacious cooling spot
- Adjustable magnifying glass
- Armrest for optimised working ergonomics
- Spacious and heated paraffin collection tray
- 3.8-litre paraffin container
- Programmable operating times
- Easily adjustable LED-illumination
- Intuative control panel
- Integrated heated wax trimmer
- Two pre-warmed areas for 80 cassettes and 200 embedding molds
- Optional electrically heated forceps
MPS/P1 EMBEDDING CENTRE SPECIFICATION
Temperature Range | Up to 80 °C for paraffin container Up to 80 °C for cassette/mould storage containers Up to 80 °C for working area Down to -5 °C for cooling spot |
Paraffin Container | 3.8 litres |
Cooling Spot | 50 x 50 mm, Peltier |
Forceps Holder | 2 x 3 magnetic, adjustable |
Illumination | 3 x LED spots, fixed 3x LED spots, adjustable |
Magnifier | Plastic, adjustable |
Paraffin Flow | Activation manually or by footswitch Adjustable paraffin flow rate |
Control | Microprocessor Programming of temperature, working day, working time, time and date |
Work Area | 450 x 240 mm Anodized aluminium |
Dimensions [W x D x H] | 450 x 570 x 295 mm |
Weight (without accessories) | 23 kg |
Electrical Parameters | 230 V; 50-60 Hz (Art.No.: 10190000) 115 V; 50-60 Hz (Art.No.: 10192000) Pmax: 650 W |
