Personnel Safety
Apart from completely protecting the person handling the material inside the cabinet, the chemical toxins produced are not released to the outside but remain inside the cabinet thanks to the filtration system formed by a variety of activated carbon filters.
Flexible
These can be used in areas where it is difficult to extract contaminated air, such as the lower floors of buildings, and they can be placed in different locations, which it means that they can be easily relocated if needed.
Economic Savings
The innovative system removes the need for expensive work is necessary to install conduits to extract the gas to the outside which means there are no additional costs and no need to interrupt a laboratory working at full capacity.
Energy Savings
Unlike traditional extraction hoods, our fume hoods do not use the air conditioning equipment inside the lab, which substantially reduces energy costs. The aspirated air is not expelled outside but recirculated back into the lab free from contaminating substances.
G Series Features
More information on the new LCD display
- New size 127x34mm display
- Air speed continuously monitored
- Type of filter installed, working hours, expiration date and next revision date
- Open door warning through electronic photocell
- Countdown timer
- Clock and calendar
Features and components
- Initial air flow cycle adequacy and final purge cycle
- Fault LED
- Control of air flow through Microprocessor
- Activated carbon filters with electronic chip
- Internal temperature sensor
- LED illumination
Alarms and scheduled warnings
- Open door warning
- Open door in off mode warning
- 60h of filter use warning
- Next validation warning
- Few hours of filter life warning
- Countdown timer warning
- Expired filter alarm (by hours)
- Expired filter alarm (by date)
- Temperature alarm
- Equipment without filter alarm
- Low barrier alarm

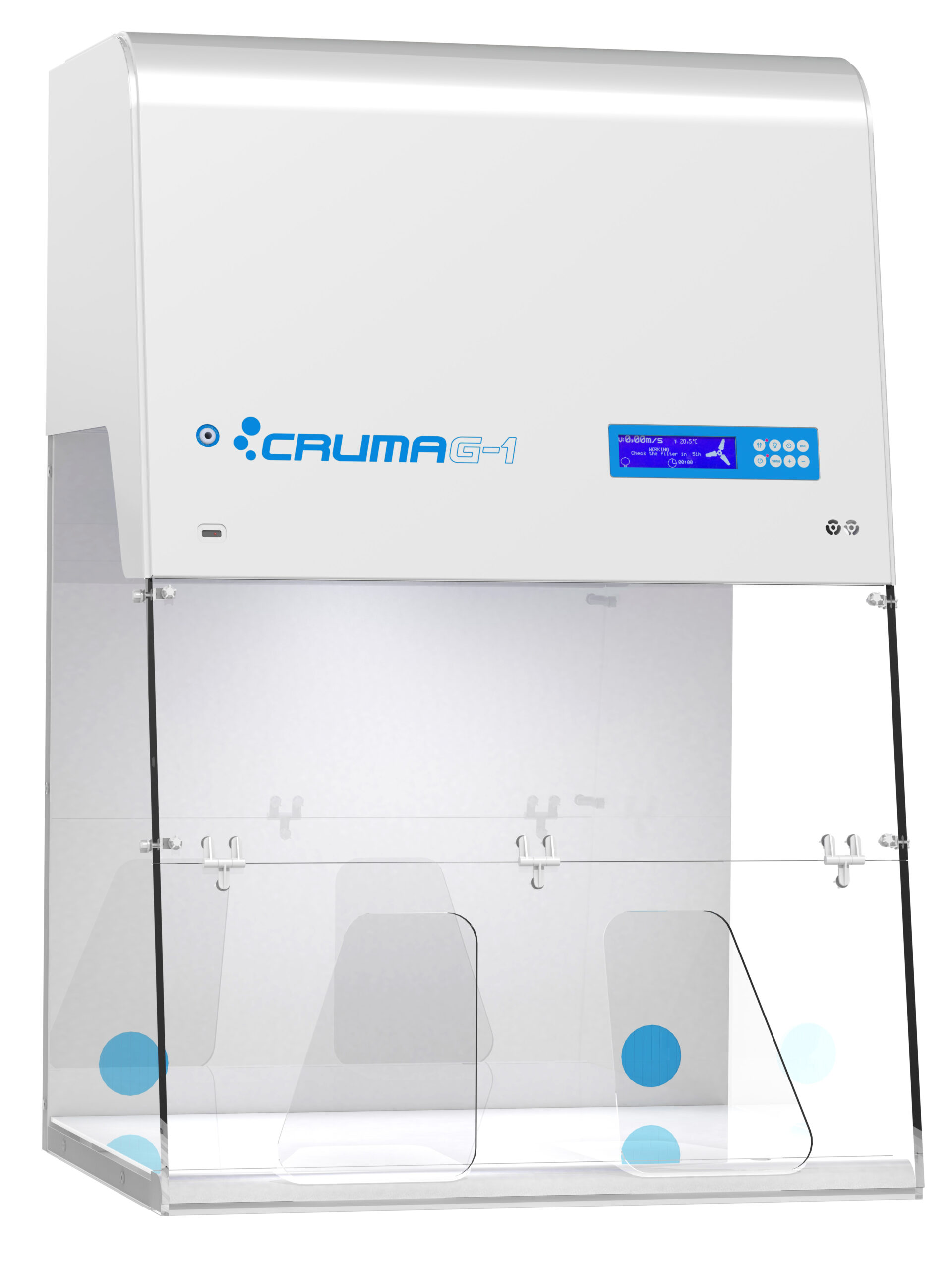

G Series
Model G1 G2 G3 G4 G5 Internal Sizes (width/depth/high) 776x600x762 976x600x762 1176x800x762 1576x800x762 1776x800x762 External Sizes (width/depth/high) 797x650x1195 997x650x1195 1197x850x1195 1597x850x1195 1797x850x1195 Filtration columns 1 1 2 2 2 Filter number 1 a 3 1 a 3 2 a 6 2 a 6 2 a 6 Fans 1 1 2 2 2 Average volume of treated air/hour 157 m3/h 157 m3/h 157 m3/h 157 m3/h 157 m3/h Average face velocity 0.50 m/s 0.50 m/s 0.50 m/s 0.50 m/s 0.50 m/s Internal volume of the cabinet 0.32m3 0.40m3 0.67m3 0.89m3 1.01m3 Renewals inside the cabinet/min. 8.13 m/s 6.47 m/s 4.2 m/s 3.1 m/s 2.7 m/s Total electrical power consumption 91 W 91 W 174 W 174 W 174 W Voltage-Frequency 220 V / 50-60 Hz 220 V / 50-60 Hz 220 V / 50-60 Hz 220 V / 50-60 Hz 220 V / 50-60 Hz LED light intensity 900Lux / LED 16 W 900Lux / LED 16 W 900Lux / LED 16 W 900Lux / LED 16 W 900Lux / LED 16 W UV Lamp - - - - - Noise level 45 dB 45 dB 45 dB 45 dB 45 dB Weight 95 Kg 110 Kg 130 Kg 160 Kg 180 Kg Packaging volume 0.80 m3 0.80 m3 1.24 m3 1.66 m3 1.86 m3
